KSE operates a comprehensive range of injection molding machines from 200 to 2500 tons, equipped with the latest technology to meet diverse manufacturing requirements.
State-of-the-Art Equipment
Our manufacturing facilities are equipped with advanced injection molding machines that provide precision, efficiency, and reliability for all types of plastic components and assemblies.
- Advanced control systems for precise molding parameters
- Energy-efficient hydraulic and electric drive systems
- Automated material handling and feeding systems
- Real-time monitoring and quality control integration
- Quick mold change capabilities for flexible production
- Multi-material and multi-color injection capabilities
Comprehensive specifications of our injection molding machines by capacity and capabilities
Complete Machine Specifications
Detailed technical specifications of all our injection molding machines by grade and capacity
| Specification | 50t | 100t | 160t | 200t | 350t | 550t | 650t IDE | 650t LGH | 850t | 1300t | 1800t | 2500t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model Name | ID50E | IDE100EN | IDE160EN | IDE200EN | IDE350EN | IDE550EN | IDE650EN | LGH650N | IDE850EN | IDE1300HM | LGH1800CHM | LGH2500HM |
| Screw dia (mm) | 28 | 36 | 45 | 55 | 60/65 | 75/85 | 90 | 100 | 105 | 125 | 130 | 140 |
| Injection Capacity (PS, gr.) | 45 | 150 | 341 | 546 | 855/1007 | 1670/2150 | 2890 | 3570 | 4600 | 7140 | 8390 | 10880 |
| (PS, oz) | 1.5 | 5.3 | 12 | 19.2 | 30/35.5 | 58.9/75.8 | 101.9 | 126 | 162.2 | 251.8 | 295.9 | 383 |
| Screw Max rpm | 380 | 325 | 255 | 205 | 195 | 170/108 | 140 | 127 | 120 | 100 | 83 | 90 |
| Clamping force (metric ton) | 50 | 100 | 160 | 200 | 350 | 550 | 650 | 650 | 850 | 1300 | 1800 | 2500 |
| (US ton) | 55 | 110 | 160 | 220 | 390 | 610 | 720 | 715 | 950 | 1450 | 2000 | 2750 |
| Tie rod distance (WxH mm) | 310 X 310 | 370 X 370 | 520 X 520 | 540 X 540 | 710 X 710 | 860 X 860 | 980 X 980 | 1000 X 1000 | 1100 X 1100 | 1400 X 1400 | 1600 X 1600 | 1810 X 1610 |
| Platen dimension (WxH mm) | 480 X 480 | 565 X 565 | 740 X 740 | 790 X 790 | 1000 X 1000 | 1230 X 1230 | 1420 X 1420 | 1440 X 1440 | 1580 X 1580 | 1950 X 1950 | 2150 X 2150 | 2480 X 2250 |
| Clamping stroke (mm) | 370 | 460 | 500 | 560 | 710 | 1200 | 1350 | 1350 | 1750 | 1800 | 1700-2400 | 2700 |
| Open daylight (max mm) | 530 | 630 | *900/720 | *1000/800 | *1250/1010 | 1600 | 1800 | 1800 | 2250 | 2000-2500 | 2500-3200 | 3600 |
| Mold thickness (Min/Max mm) | 160 | 170 | *220/440 | *240/440 | *300/540 | 400 | 450 | 450/1100 | 500-1150 | 700-1250 | 800-1500 | 900/1700 |
| Ejection stroke (max mm) | 60 | 80 | 90 | 100 | 125 | 160 | 200 | 250 | 250 | 300 | 300 | 350 |
| Locate dia ring dia (mm) | 100.00 | 100.00 | 100.00 | 100.00 | 100.00 | 100.00 | 100.00 | 100.00 | 120.00 | 120.00 | 120.00 | 120.00 |
| Hydraulic clamping (QDC) Thickness (mm) | 30 | 30 | 35 | 35 | 40 | 40 | 40 | 40 | 40 (Max 45) | 50 | 70 (Max 80) | 90 |
| Nozzle diameter (mm) | 3.00 | 3.00 | 4.00 | 4.00 | 4.00 | 5.00 | 5.00 | 5.00 | 5.50 | 6.00 | 6.00 | 6.00 |
| Cooling water hose diameter | 10 | 10 | 10 | 10 | 10 | 12 | 0 | 12 | 12 | 12 | 12 | 12 |
| Qty | 1 | 2 | 1 | 3 | 7 | 11 | 3 | 2 | 10 | 11 | 9 | 2 |
Machine Inventory Summary
Total Machines
62
Capacity Range
50t - 2500t
Largest Capacity
2500t
Total Clamping Force
15,650t
Our machines are equipped with cutting-edge technology for optimal performance and quality
Control Systems
Advanced PLC control systems with touch-screen interfaces for precise parameter control and real-time monitoring.
Energy Efficiency
Variable speed drives and energy-saving hydraulic systems that reduce power consumption and operating costs.
Quick Change
Rapid mold change systems that minimize downtime and increase production flexibility for different projects.
Our machines are designed to handle a wide range of thermoplastic materials
Thermoplastic Materials
- ABS (Acrylonitrile Butadiene Styrene): Automotive parts, electronics housings
- PC (Polycarbonate): Optical lenses, safety equipment
- PP (Polypropylene): Food containers, automotive components
- PE (Polyethylene): Packaging, industrial parts
- PA (Nylon): Mechanical parts, gears
- POM (Acetal): Precision parts, bearings
- PBT (Polybutylene Terephthalate): Electrical components
- TPE (Thermoplastic Elastomers): Flexible parts, seals
Material Processing Features
- Precise temperature control (±2°C)
- Multi-zone heating systems
- Material drying and conditioning
- Color mixing and blending capabilities
- Recycled material compatibility
- Additive masterbatch integration
- Material flow analysis optimization
- Quality control integration

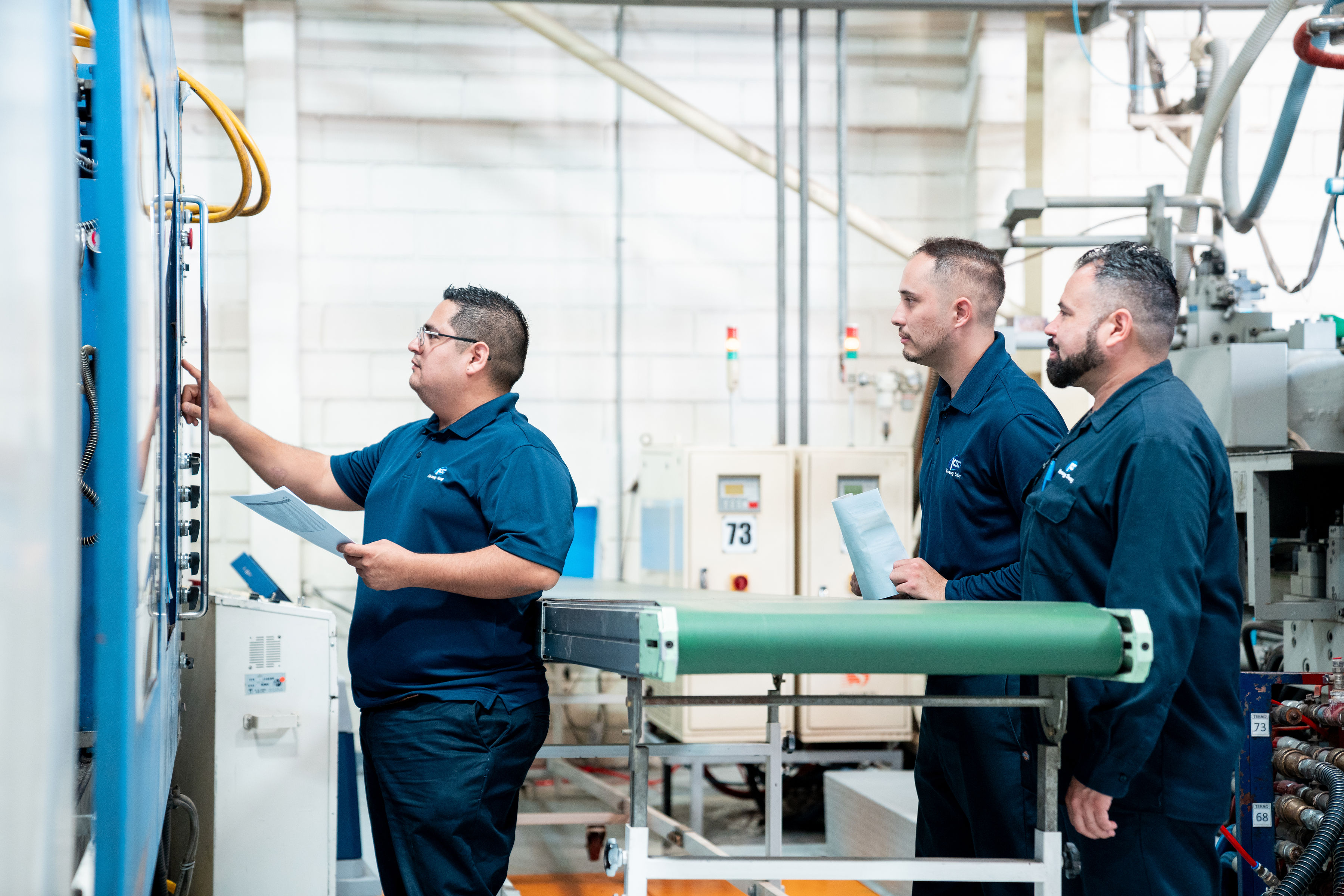

Built-in Quality Assurance
Our injection molding machines are integrated with advanced quality control systems to ensure consistent product quality and compliance with industry standards.
- Real-time process monitoring and control
- Automated quality inspection systems
- Statistical process control (SPC) integration
- Traceability and documentation systems
- Defect detection and prevention
- Compliance with automotive and electronics standards
